通達信線性回歸線主圖看趨勢指標(biāo)公式：

UR:=10;LR:=10;
TC1:=IF(H=HHV(H,8*UR),H,DRAWNULL);
TC2:=CONST(BARSLAST(TC1=H))+1;
UP:CONST(IF(TC2=1,H,REF(H,TC2-1)));
BC1:=IF(L=LLV(L,8*LR),L,DRAWNULL);
BC2:=CONST(BARSLAST(BC1=L))+1;
LL:CONST(IF(BC2=1,L,REF(L,BC2-1)));
LP:=CURRBARSCOUNT<=BC2 AND L=LL;{低點定位}
HP:=CURRBARSCOUNT<=TC2 AND H=UP;{高點定位}
STICKLINE(IF(BC2>TC2,HP,LP),LL,UP,0,0),COLOR628962;
STICKLINE(IF(BC2>TC2,LP,HP),LL,UP,0,0),COLOR628962;
NOD:=(IF(TC2>BC2,TC2,BC2)-IF(TC2>BC2,BC2,TC2));{用時}
LR1:=FORCAST(C,NOD+1);
NP:IF(CURRBARSCOUNT<=MAX(BC2,TC2),CONST(IF(MIN(TC2,BC2)=1,LR1,REF(LR1,MIN(TC2,BC2)-1))),DRAWNULL),POINTDOT,COLOR93BDA8;{近點}
LR2:=SLOPE(C,NOD+1);
LR3:=CONST(IF(MIN(TC2,BC2)=1,LR2,REF(LR2,MIN(TC2,BC2)-1)));
FP:NP-LR3*(NOD),POINTDOT,COLOR93BDA8;{遠(yuǎn)點}
EQU:(NP+FP)/2,POINTDOT,COLOR93BDA8;
AD:=ABS(NP-FP);{高差};
DBL:=BARSLAST(BC1!=DRAWNULL)+1;
DBH:=BARSLAST(TC1!=DRAWNULL)+1;
BSP:=IF(BC2>TC2,DBL,DBH)-1;
LRL:=IF(NP>FP,FP+AD/NOD*BSP,FP-AD/NOD*BSP);
AT1:=IF(BETWEEN(CURRBARSCOUNT,BC2,TC2) AND H>LRL,H,LRL);
AT2:=HHV(AT1-LRL,MAX(BC2,TC2));
AT3:=CONST(BARSLAST(AT1-LRL=AT2));
AT4:=CONST(IF(AT3=0,H,REF(H,AT3)));
AT5:=CONST(IF(AT3=0,AT1-LRL,REF(AT1-LRL,AT3)));
ATL:=LRL+AT5;
UT1:=IF(BETWEEN(CURRBARSCOUNT,BC2,TC2) AND L<LRL,L,LRL);
UT2:=HHV(LRL-UT1,MAX(BC2,TC2));
UT3:=CONST(BARSLAST(LRL-UT1=UT2));
UT4:=CONST(IF(UT3=0,H,REF(H,UT3)));
UT5:=CONST(IF(UT3=0,LRL-UT1,REF(LRL-UT1,UT3)));
UTL:=LRL-UT5;
RH:=IF(CURRBARSCOUNT>=MIN(BC2,TC2)-10,ATL,CONST(REF(ATL,MIN(BC2,TC2)-11)));{限制高}
RL:=IF(CURRBARSCOUNT>=MIN(BC2,TC2)-10,UTL,CONST(REF(UTL,MIN(BC2,TC2)-11)));{限制低}
中軌:IF(NP>FP,IF(LRL<=RH,LRL,DRAWNULL),IF(LRL>=RL,LRL,DRAWNULL)),COLOR628962;
上軌:IF(NP>FP,IF(ATL<=RH,ATL,DRAWNULL),IF(ATL>=RL,ATL,DRAWNULL)),COLOR628962;
下軌:IF(NP>FP,IF(UTL<=RH,UTL,DRAWNULL),IF(UTL>=RL,UTL,DRAWNULL)),COLOR628962;

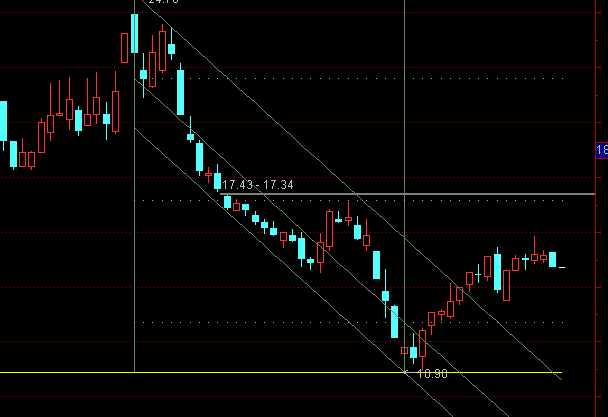

通達信線性回歸線主圖看趨勢指標(biāo)公式實例圖解：

通達信線性回歸線主圖看趨勢指標(biāo)公式
